U902 Series LED High Bay Light
| Model | U902-150W-DIM |
| Power | 150W |
| Lumens Output | 22,500 LM |
| LED Quantity | 280 pcs |
| Installation Height | 14-16 ft |
| Dimensions | φ10.4" × 5.5" |
| Weight | 5.5 lb |
| Material | Die-cast aluminum + PC |
| Color Temperature | 5000-6000K (Daylight) |
| Luminous Efficacy | 150 Lm/W |
| CRI | >80 Ra |
| System Power Consumption | ±5W |
| Input Voltage | AC 110-277V |
| Waterproof Rating | IP65 |
| Operating Temperature | -50°F to 120°F |
| Motion Sensor | No |
| Dimmable | Yes (0-10V) |
| Lifespan | 50,000 hours |
| Warranty | 5 years limited warranty |
Product Features
Broad Application

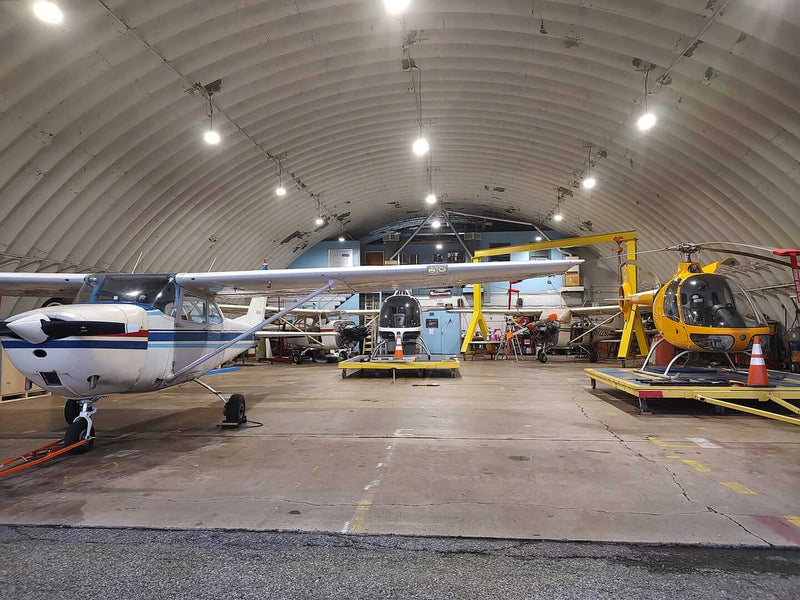

Ideal for commercial/industrial settings, home workshops, gyms, garages, warehouses, and auditoriums. Provides professional lighting with a modern, fashionable design.
Industrial Grade
Heavy-duty aluminum construction ensures durability. Excellent heat dissipation with optimized heat sink design. IP65 rated dustproof and waterproof housing ensures long operational life.
Power efficient & save Bill

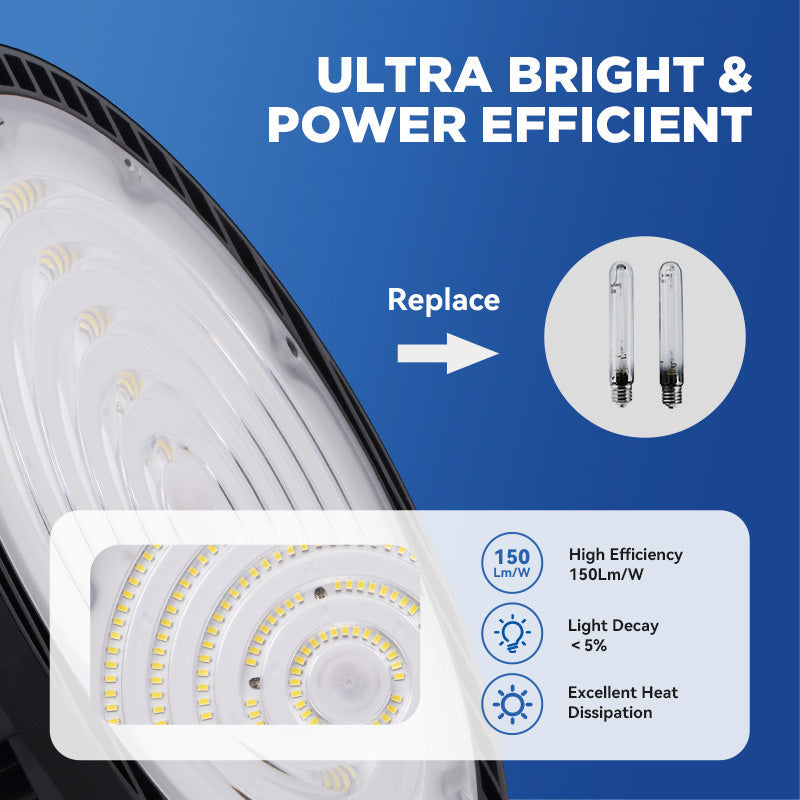

The 150 W Led high bay light could replace 450W old metal halide, mercury vapor lights， HID, or fluorescent lights. More energy-efficient and save about 66% cost of those old lights.
IP65 waterproof
The product is strictly in accordance with the IP65 waterproof level, and can work normally in wet location.
Slim design for better heat dissipation
Ultra-thin die-cast aluminum lamp body brings an excellent heat sink making it more than 500，000 hours lifespan with very low time-luminosity decay, no flickering.
High Brightness
The high transmittance PC cover providers better light efficiency conversion. High-quality die-cast aluminum guides the heat to dissipate quickly . The recommended installation distance is 2H installation height.
Light up your space with LANGY
Lighting Coverage Guide
Number of fixtures needed for different area sizes
| Watts | Height | Small (20x20 - 20x80) |
Medium (20x90 - 30x90) |
Large (30x100 - 40x90) |
X-Large (40x100 - 50x100) |
XX-Large (60x60 - 100x200) |
|---|---|---|---|---|---|---|
| 100W | 12ft | 2-8 (hover) | 6-12 (hover) | 8-18 (hover) | 12-24 (hover) | 15-80 (hover) |
| 150W | 14ft | 2-6 (hover) | 4-9 (hover) | 6-12 (hover) | 8-20 (hover) | 12-56 (hover) |
| 200W | 16ft | 2-4 (hover) | 3-6 (hover) | 4-9 (hover) | 6-12 (hover) | 8-42 (hover) |
100W
12ft height150W
14ft height200W
16ft height
